Vision Compact Mini Sky Box TV Link Magic Eye Remote Extender Fly Lead & F Input

(No reviews yet) Write a Review
SKU:
V55002
UPC:
5060239768763
MPN:
V55-002
Condition:
New
Availability:
Available Now With Free UK Shipping
Weight:
58.00 Grams
Width:
2.70 (cm)
Height:
2.00 (cm)
Depth:
5.40 (cm)
Shipping:
Calculated at Checkout
  • Vision Compact Mini Sky Box TV Link Magic Eye Remote Extender Fly Lead & F Input
  • Vision Compact Mini Sky Box TV Link Magic Eye Remote Extender Fly Lead & F Input
  • Vision Compact Mini Sky Box TV Link Magic Eye Remote Extender Fly Lead & F Input
  • Vision Compact Mini Sky Box TV Link Magic Eye Remote Extender Fly Lead & F Input
  • Vision Compact Mini Sky Box TV Link Magic Eye Remote Extender Fly Lead & F Input
  • Vision Compact Mini Sky Box TV Link Magic Eye Remote Extender Fly Lead & F Input
  • Vision Compact Mini Sky Box TV Link Magic Eye Remote Extender Fly Lead & F Input
  • Vision Compact Mini Sky Box TV Link Magic Eye Remote Extender Fly Lead & F Input
  • Vision Compact Mini Sky Box TV Link Magic Eye Remote Extender Fly Lead & F Input
  • Vision Compact Mini Sky Box TV Link Magic Eye Remote Extender Fly Lead & F Input
  • Vision Compact Mini Sky Box TV Link Magic Eye Remote Extender Fly Lead & F Input
  • Vision Compact Mini Sky Box TV Link Magic Eye Remote Extender Fly Lead & F Input
Price: £8.99

Description

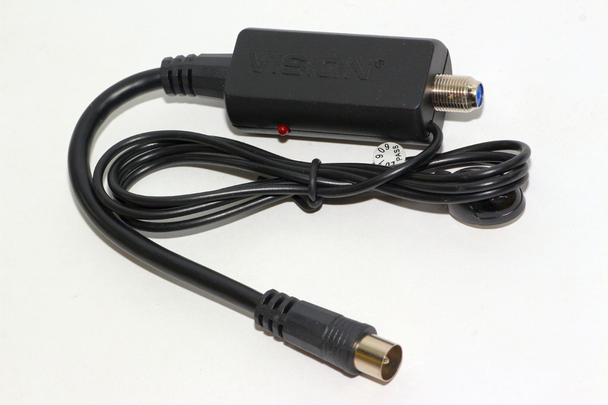

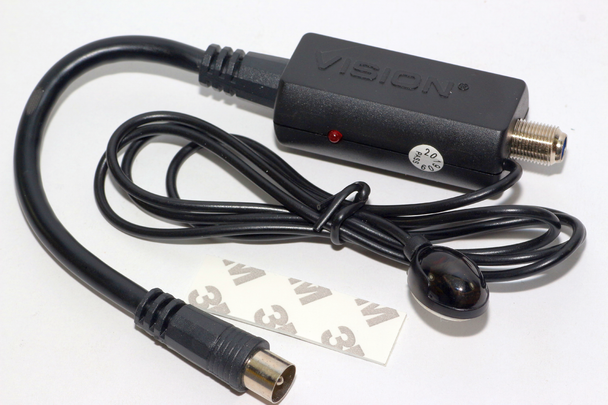

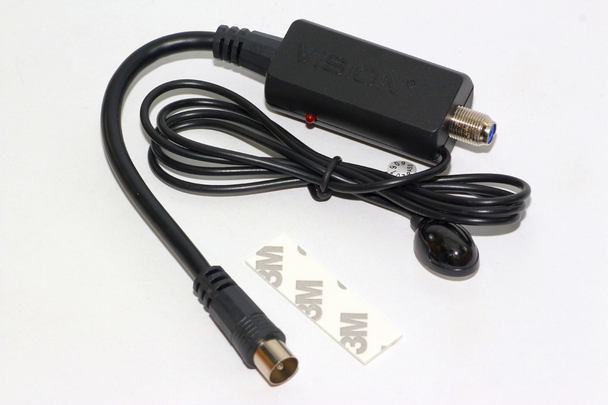

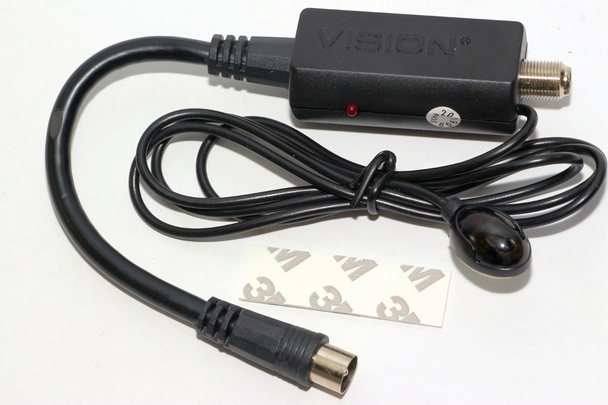

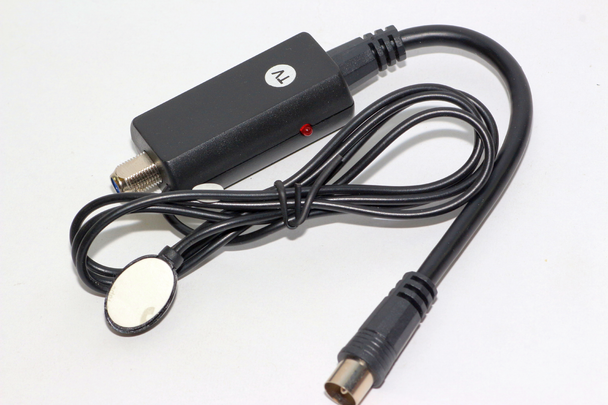

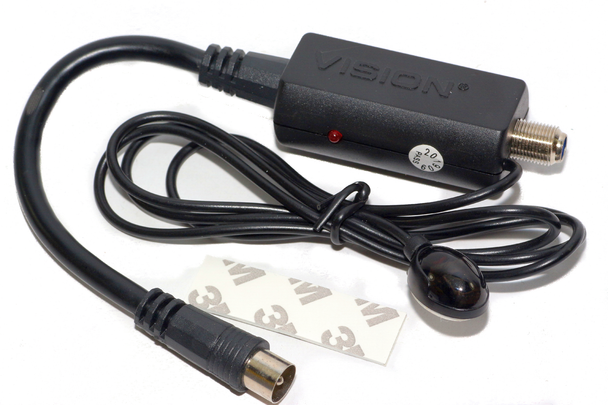

Vision V55-002 TV Link suitable for extended remote control operation of Sky Digi boxes. This is the Vision version of the Sky magic eye with a miniature remote receiving eye and an F connector input.

This unit allows the remote control of a Sky Digi Box, Sky Plus Box or Sky HD Box  from another room in your home.

The functionality of this unit is the same as the other versions, though it has a different construction.

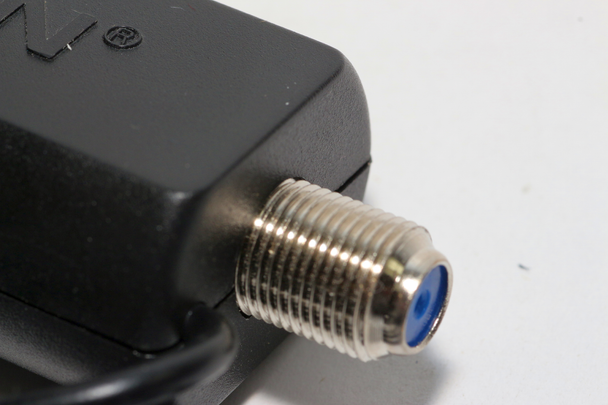

The main unit has a 150mm flying coaxial lead for the output and an F connector socket for the input. This ensures a more solid connection and is the professional installers choice of TV link.

Since the output is a short fly lead it is advantageous for installations where there is limited space available. This TV Link is especially suitable for wall mounted flat panel televisions. The short coax lead also puts less strain on the aerial socket of the TV.

With the standard one piece version it has been known for accidents to occur and the aerial socket of the TV can get wrenched off! The fly lead attached is also useful where the TV has a recessed aerial socket, the standard TV link may not fit in this instance.

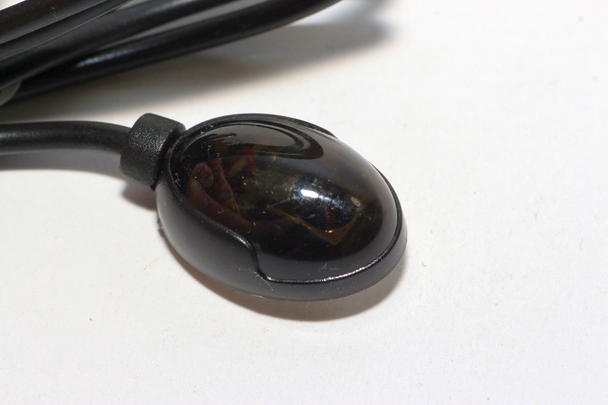

The remote sensing eye on this version is particularly small. That makes this unit a favourite for flat panel TV installations that are on the wall as you can hardly see the remote sensor. The remote sensor also has a double sided sticky pad fitted for easy mounting in a discreet place. The infra red eye is only 9mm in height.

Main features:

  • F Connector Input For Superior Connectivity
  • 150mm Fly Lead with Male Coaxial Aerial Plug
  • Mini Remote Sensor only 9mm in Height
  • IR Filter on Sensor Improves Operation in Bright Rooms
  • Integral Power LED
  • Low Power Consumption
  • 3M Sticky mounting Pads Supplied

This unit works due to the clever TV Link feature fitted to Sky digi boxes. At the rear of the receiver you will find an RFOUT2 connection. If you connect a long male to female coaxial cable to this connection and feed it to another room then you can connect the TV Link unit at the remote end of the cable. The TV Link connects in between the aerial plug on the cable and the aerial socket of your TV. You can then use the Sky remote control you already have or an additional handset to change channels and fully operate the Sky box. This avoids you having to continually go through to the room where the Sky box is located.

How does this work?............... The  TV Link unit effectively operates as an extended infra red receiver that is already fitted to the front of your digi box. The TV link sends the infra red commands form your Sky remote control back up the coaxial cable. These commands are received and actioned by the digi box. In order for the TV Link to operate it requires power and this is cleverly fed down the coaxial cable from the digi box internal power supply. The red LED on the link unit will illuminate when power is present.

Please note the TV Link does not transmit any picture information. It works in conjunction with an existing cable that is connected between your digi box RFOUT2 and your television. It is important that a good quality digital coaxial cable is used.

Please note that this TV Link will only work directly with Sky digi boxes that have and RFOUT2 connection. If you are using a newer version of the Sky digi box then you will additionally have to purchase an IO Link.


View AllClose

Warranty Information

1 Year
View AllClose

Additional Information

Product Information 1:
Genuine Vision Sly TV Link Magic Eye Remote Extender - F Connector Input for Superior Connection
Product Information 2:
TV Link has High Quality 150mm Fly Lead With Male Coax Plug to Allow Low Profile Mounts
Product Information 3:
Integral Red Power LED - Low Power Consumption
Product Information 4:
Mini Receiving Eye is Approximatetly 15mm in Length and 9mm in Height
Product Information 5:
Compatible With all Sky Boxes, Sky, Sky+, Sky HD that have an RFOUT2 Connection
Product Colour:
Black
Product Dimensions:
27mm x 54mm x 20mm
