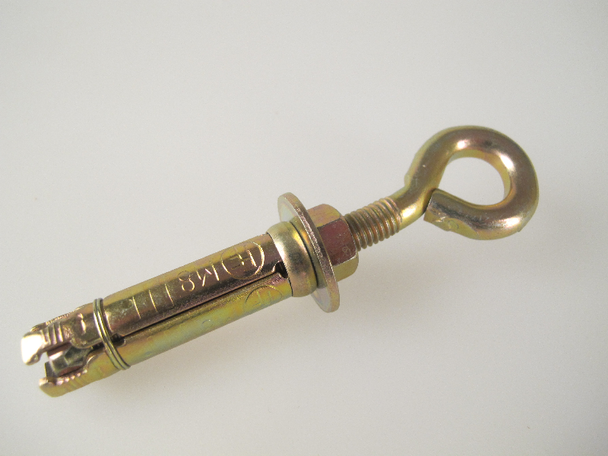

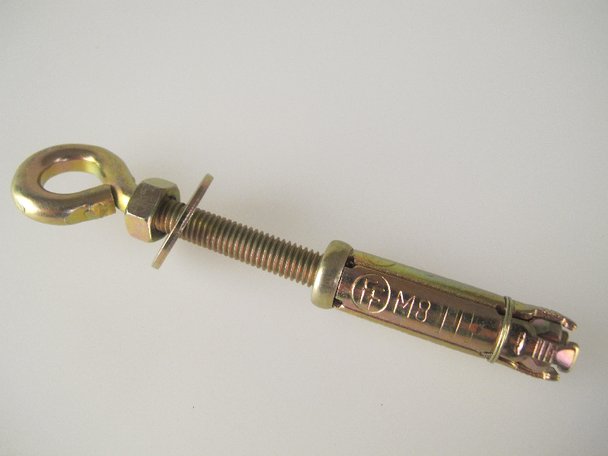

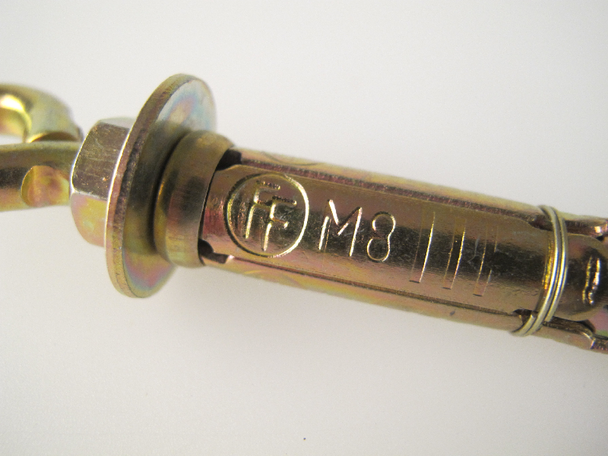

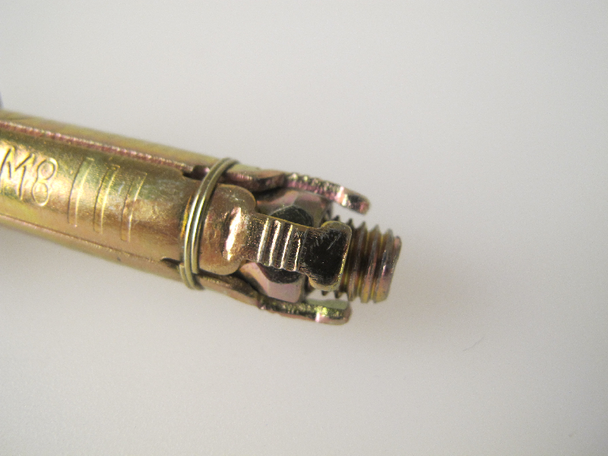

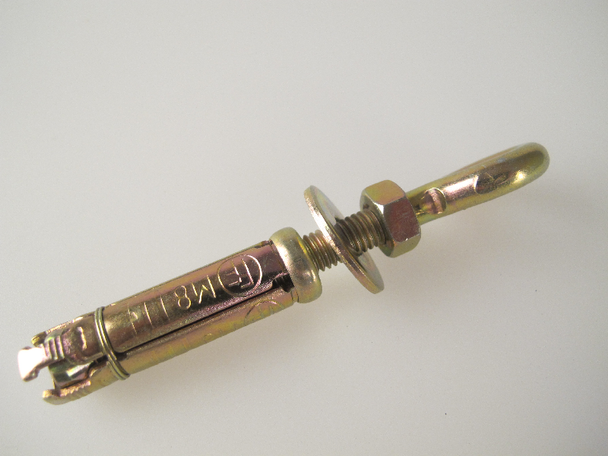

M8 x 65mm Masonry Anchor Eye Bolt, Zinc Yellow Passivated

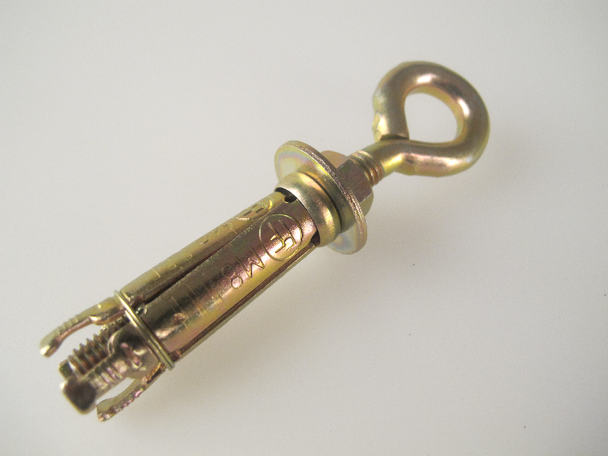

Masonry M8 x 65mm anchor eye bolt for heavy duty fixing applications. This eye bolt is zinc yellow passivated for superior corrosion protection. The four way expansion shield provides a strong and secure anchorage. The bolts' specially manufactured retaining springs ensure encapsulation of the wedge during expansion. To use the bolts first drill a 14mm diameter hole with a minimum depth of 50mm then use an M8 spanner to tighten the nut and expand the shield. The M8 eye bolt has a total overall thread length of 65mm.

Lets look at the bolt specifications:

• Type: Masonry Anchor Eye Bolt
• Quantity Supplied: 1
• Material: Zinc Yellow Passivated Steel
• Size: M8
• Bolt Thread Length: 65mm
• Overall Length: 95mm
• Eye Hole Diameter: 12mm
• Washer Size: m8 x 25mm
• Shield Diameter: 8mm
• Shield Length: 50mm
• Example Application: Cable Fixings To Masonry Walls
